特長

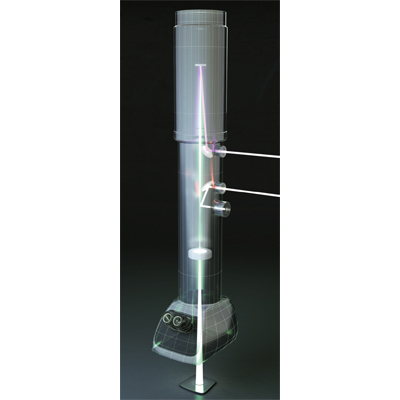

Probe laser port for photocathode:
provides an optical path to generate photoelectron probe pulsesPump laser port for specimen:
provides an optical path to directly excite the specimen using a laserOptical delivery system:
provides a column-mounted, enclosed optical path for probe and pump lasersLaser workbench:
can house various types of laser systemsLaser alignment and diagnostic tools:
allows the user to precisely align the laser beams in real timeLaser beam stabilization system (optional):
can improve the laser alignment precisionData acquision automation software:
automates a time series of TEM data acquisionC0 lens:
can enhance the signal intensity
仕様・オプション
Configurations and Performances for Various Operating Modes
| Stroboscopy | Single shot | |||
|---|---|---|---|---|
| Mode | ps stroboscopy | ns stroboscopy | single shot DTEM | movie mode DTEM |
| Cathode(s) | LaB6 guard ring
Ta disk |
LaB6 (truncated tip)
LaB6 guard ring Ta disk |
Ta disk | Ta disk |
| Spectrometer | Recommended | Customers select | Incompatible | Incompatible |
| Bench* | 1,200 x 2,400 mm
optical table |
Optical teble is not
always necessary |
Optical teble is not
always necessary |
1,200 x 2,400 mm
optical table |
| Probe laser*
pulse energy pulse width wavelength |
100 nJ
300 fs or less 257 nm |
100 μJ
5 ns or less 266 nm |
10 mJ
10 ns or less 266 nm |
10 mJ
9 × 20 ns 266 nm |
| Pump laser*
pulse energy pulse with wavelength |
10 μJ
300 fs or less 515 nm |
10 μJ
5 ns or less 532 nm |
1 mJ
10 ns or less 532 nm |
1 mJ
10 ns or less 532 nm |
| Repetition rate* | approx. 1 MHz | approx. 1 kHz | SS (10 Hz) | SS (10 Hz) |
| Emission | 100 e-/pulse or less | 10 e-/pulse or less | approx. 108 e-/pulse | approx. 109 e-/pulse |
| Energy spread | 1.5 eV or less | 1.5 eV or less | 100 eV or less | 100 eV or less |
| Temporal width | 1.2 ps or less | 10 ns or less | 20 ns or less | 20 ns or less |
| Spatial resolution | 1 nm or less | 1 nm or less | approx. 10 nm | approx. 10 nm |
| Delay
Range Presision Optical jitter |
Linear stage
-666 ps to + 2000 ps ± 0.017 ps |
Delay generator
-1 μs to + 1 ms ± 0.05 ns ± 5 ns or less |
Delay generator
-∞ to + ∞ ± 0.05 ns ± 5 ns or less |
Digital sequencer
-100 μs to 100 μs approx. ± 1 ns ± 5 ns or less |
| Cathode lifetime* | approx. 6 months
Ta disk:12 months or more (as option) |
approx. 6 months
Ta disk:12 months or more (as option) |
12 months or more | 12 months or more |
typical values
Standard room layout for JEM-2100Plus based Luminary
For ns stroboscopy and single shot DTEM, optical table (OT) is not always necessary depending on the laser configuration.
AC: Air Compressor
CU: Card Unit
HT: High Tension Tank
OT: Optical Table
PS: Power Supply
RP: Oil Rotary Pump
