原子面
原子面
atomic plane
[目次:結晶等(結晶構造/材料試料)]
結晶を、原子が面状にかつ周期的に積み重なったものとして考えるとき、原子で作られる仮想的な面を原子面という。結晶ではいろいろな方向を向いた面が考えられ、それらの面はミラー指数を使って指定される(図1)。

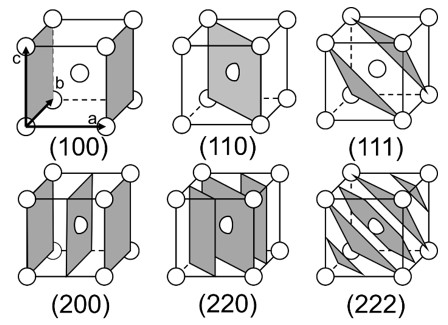

図1:例として、体心立方構造において考えられるいろいろな面と、それらの面を指定するミラー指数を示す。なお、高い次数の面では、原子を含まないこともある(下段中央と右の図)。
When the crystal is regarded as a periodic stacking of planar array of atoms, a virtual plane composed of the atoms is called an atomic plane. In a crystal, many atomic planes with different orientations are considered. These planes are identified with the Miller index as shown in Fig. 1.
Fig. 1. As an example, various atomic planes of the body-centered cubic structure are shown together with the Miller indices identifying those planes. It is noted that high-order planes sometimes do not contain atoms, as seen in the bottom center and bottom right figures.
